Description

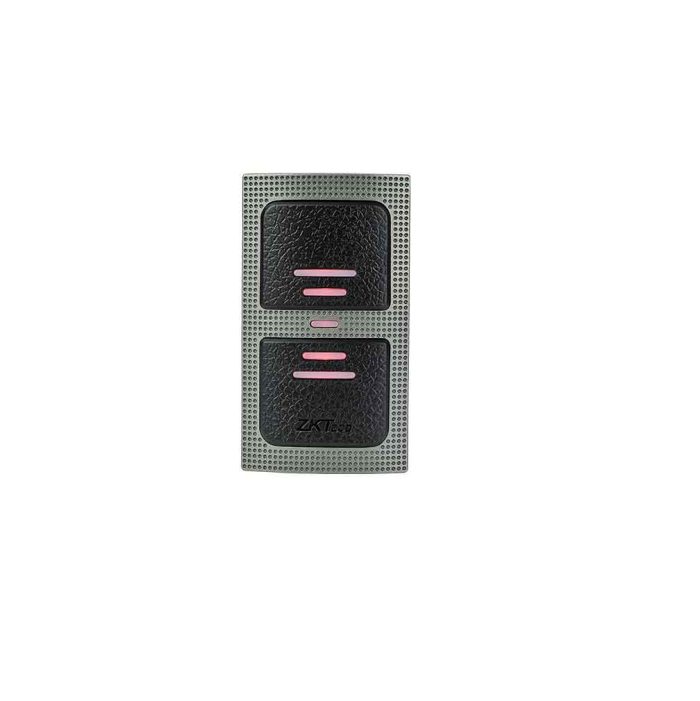

ZKTeco Wiegand Card Reader Access Control KR500

Read Range KRxxx-E: Up to 10CM • KRxxx-M: Up to 5CM

Reading Time ≤200ms

Input Port External LED Control • External Buzzer Control

Output Port KRxxx-E: 26bit Wiegand (Default) • KRxxx-M: 34bit Wiegand (Default)

Power/Current DC 6-14V / Max.70mA

LED Red and Green LEDs

Operating Temperature -10°C to +65°C

Material ABS+PC with texture

Operating Humidity 10% to 90% relative humidity • non-condensing

Beeper Yes

Operating Humidity KR500-E/M: IP65 • KR501-E/M: IP65 • KR502-E/M: IP64 • KR503-E/M: IP65
