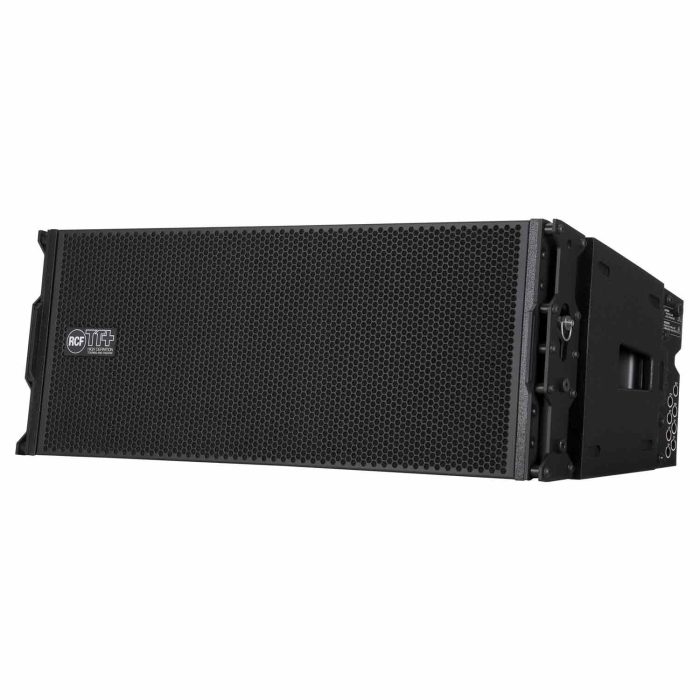

RCF’s TTL33 WP is a wide dispersion, weatherproof, 3-way passive line array module that offers incredibly high output and dynamics, extreme accuracy and high frequency extension – plus its compact size makes it the ideal tool for weatherproof outdoor sound reinforcement and corporate A/V presentation, including fixed installations in theatres, concert halls or auditoriums.
The TTL33 WP module includes the LICC-Low Impedance Compensated Crossover that features high-power aluminum case resistors and markedly lower induction values in series with the woofer. The benefit is delay reduction, reduced phase shift and better transient response.
Compact size
Maximum output per size available on the market
Wide, constant directivity, horizontal coverage angle
6 high power neodymium transducers
Minimum weight
RCF TTL33-WP Dual 8″ Weatherproof Passive 3-Way Line Array Module
18,233 د.إ
Description
RCF TTL33 WP is a wide dispersion, weatherproof, 3-way passive line array module that offers incredibly high output
Acoustic Specifications:
Frequency Response (@ -10dB): 55Hz – 20kHz
Max SPL @ 1m: 133dB
Horizontal coverage angle: 100°
Vertical coverage angle: 15°
System Sensitivity: 100dB
Nominal Impedance: 8Ω
Power Handling: LF 600 – MID/HF 400W
Peak Power Handling: LF 2400 – MID/HF 1600W
Recommended Amplifier: LF 1200 – MID/HF 800W
Crossover frequencies: 500Hz
Physical Specifications:
Height: 300mm / 11.8″
Width: 760mm / 30″h
Depth: 450mm / 18.2″
Net Weight: 29.2kg / 64.2lbs.
