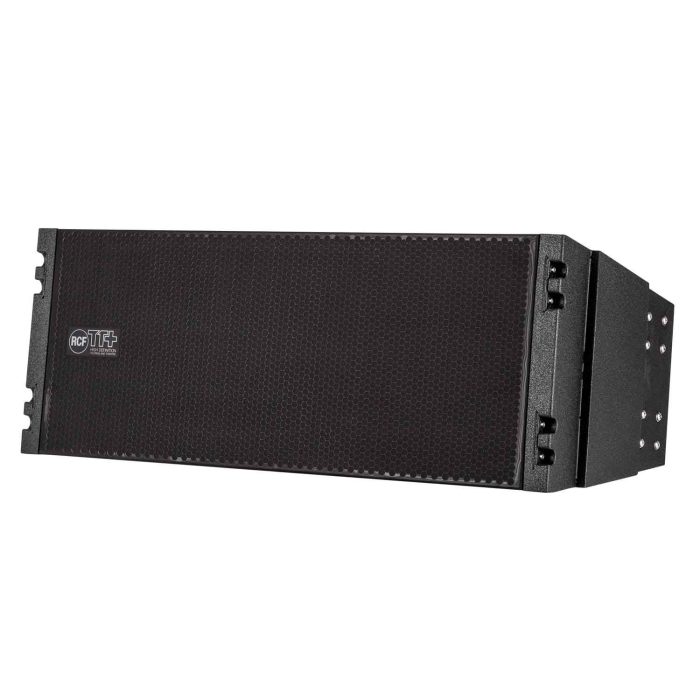

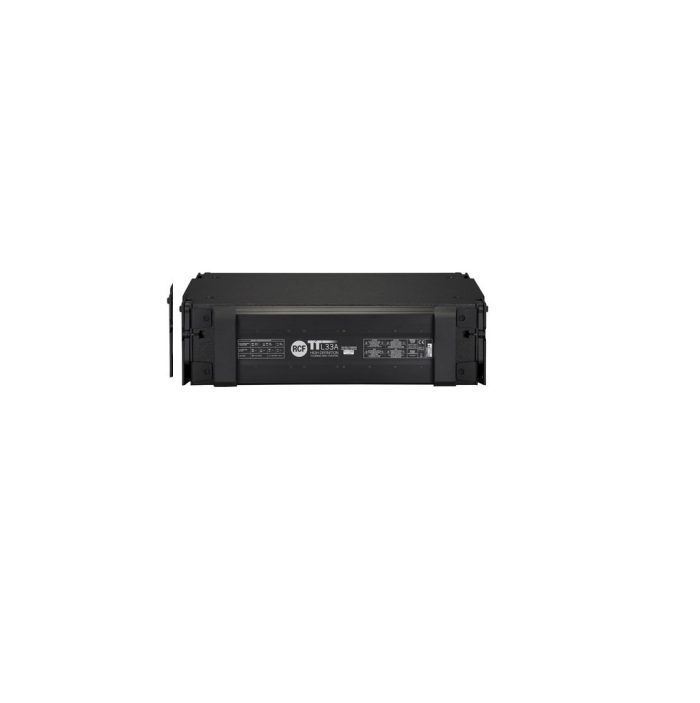

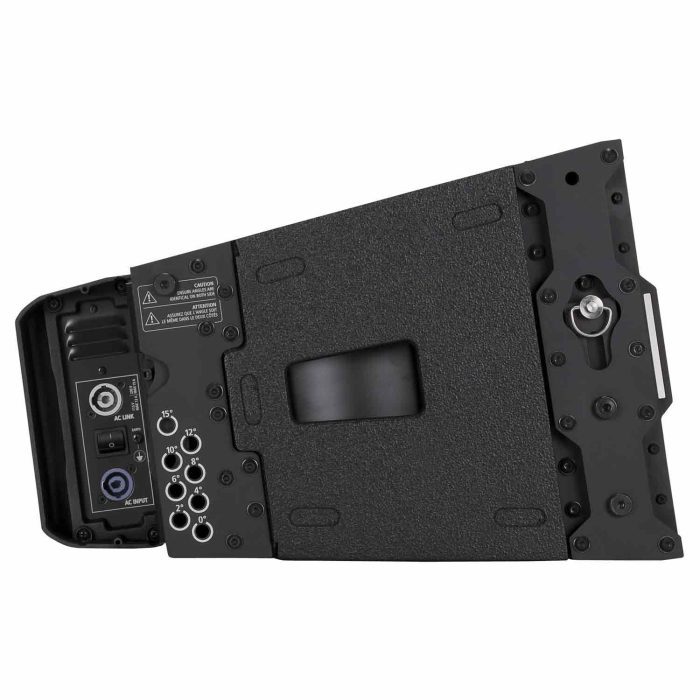

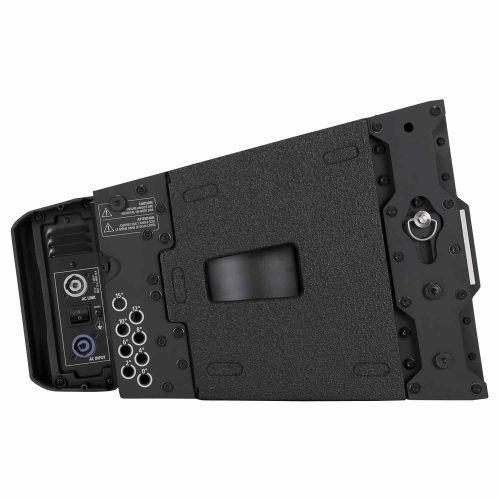

The RCF TTL 33-A II WP STADIUM is a full range, ultra-compact, wide dispersion line array module that sets a new standard in the TT+ Stadia sound reinforcement, offering substantial power and efficiency for a variety of professional outdoor applications, including stadia, sports arenas, concert halls, and other fixed venue installations. Loudspeakers are strengthened with a special waterproof film and a multi-layer coating on the grille, that is highly resistant to humidity but transparent to sound.
Effective 1250W switching power supply
6 high-power neodymium transducers
Weatherproof touring-grade Baltic birch cabinet
IP 67 connectors
Amplifier, DSP, and connections protected against humidity
RCF TTL 33-A II WP STADIUM ACTIVE 3-WAY LINE ARRAY MODULE
31,395 د.إ
Description
RCF TTL 33-A II WP STADIUM ACTIVE 3-WAY LINE ARRAY MODULE
Acoustical specifications
FREQUENCY RESPONSE:60 Hz ÷ 20000 Hz
MAX SPL @ 1M:135 dB
HORIZONTAL COVERAGE ANGLE:100°
VERTICAL COVERAGE ANGLE:15°
Power section
TOTAL POWER:2500 W Peak, 1250 W RMS
HIGH FREQUENCIES:500 W Peak, 250 W RMS
MID FREQUENCIES:1000 W Peak, 500 W RMS
LOW FREQUENCIES:1000 W Peak, 500 W RMS
COOLING :Convection/Forced
Physical specifications
Size
HEIGHT:
300 mm / 11.81 inches
WIDTH:
760 mm / 29.92 inches
DEPTH:
450 mm / 17.72 inches
WEIGHT:
33 kg / 72.75 lbs
