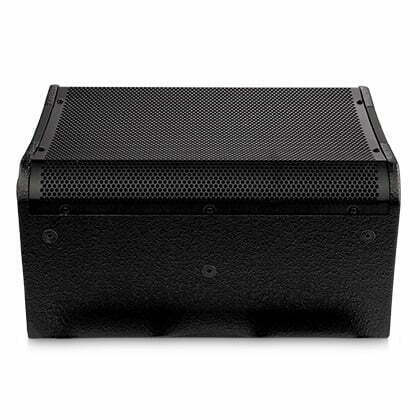

QSC AP-4122m Coaxial Multipurpose Speaker

Description

QSC AP-4122m is a Coaxial Multipurpose Speaker using Directivity Matched Transition (DMT) in 2-way models ensures smooth, coherent power response across the listening plane.

Frequency response (-10 dB) : 55 Hz – 20 kHz

Coverage angle : 90˚ conical DMT

Maximum SPL at 1 m (passive) : 121 dB continuous and 127 dB peak

Nominal Impedance : 4Ω

HF transducer : 45 mm (1.75-inch) and LF transducer : 305 mm (12-inch) driver with 64 mm (2.5-inch) voice coil

Dimensions (H×W×D) : 22.5-inch × 15.1-inch × 14.5-inch / 510 × 385 × 370 mm
