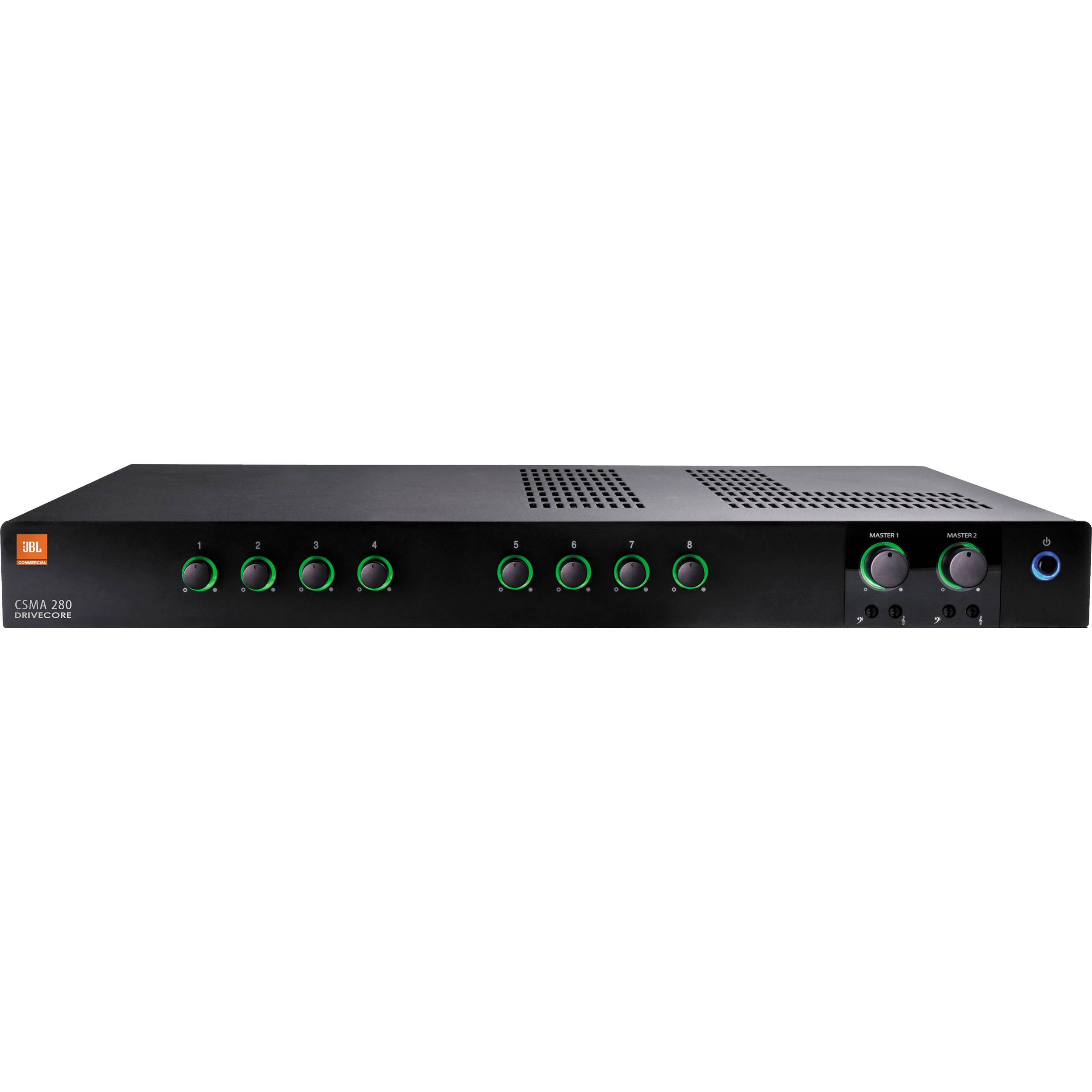

JBL CSMA 280 Dual 80W Output Commercial 8 Channel Mixer Amplifier

4,533 د.إ

the CSMA 280  Designed for commercial and industrial use, Commercial Series Mixer/Amplifier from JBL is a mixer/amplifier with eight mixer-channel inputs and two output channels. It’s capable of reaching 80W of peak power with 10W per channel. The unit’s front panel sports volume controls for each channel, as well as two master volume adjustment knobs, two sets of bass and treble controls, and a power switch. The volume controls are illuminated so they can be seen and operated in darkened environments.

SKU: CSMA 280 Categories: ,

Description

JBL CSMA 280 offers  8 inputs with 2 outputs of 120W of power.

Weight 4.81 Kg

Sensitivity (SPL / 1 W @ 1 m) Mic Input: 3 mV RMS Line Input: 775 mV RMS RCA Input: 300 mV RMS

Impedance Mic: 400 Ohms Line: 20 kOhms (balanced) RCA: 50 kOhms Frequency Response 4/8 Ohms Output: 20 Hz – 20 kHz, ±2 dB 70 V/100 V Outputs: 80 Hz – 15 kHz ±2 dB Line Out: 20 Hz – 20 kHz, ±1 dB Max.

Power Consumption 80 W per channel into 4 Ohms or 8 Ohms, 1 kHz, ≤ 0.5% THD

Dimensions 17.2 x 11.9 x 1.7″ / 436.9 x 302.3 x 43.2 mm
