The AW526-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 120° x 60° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. This loudspeaker is EN 54-24 Compliant for life safety applications. The system is equipped with a 400 W 70/100V transformer.

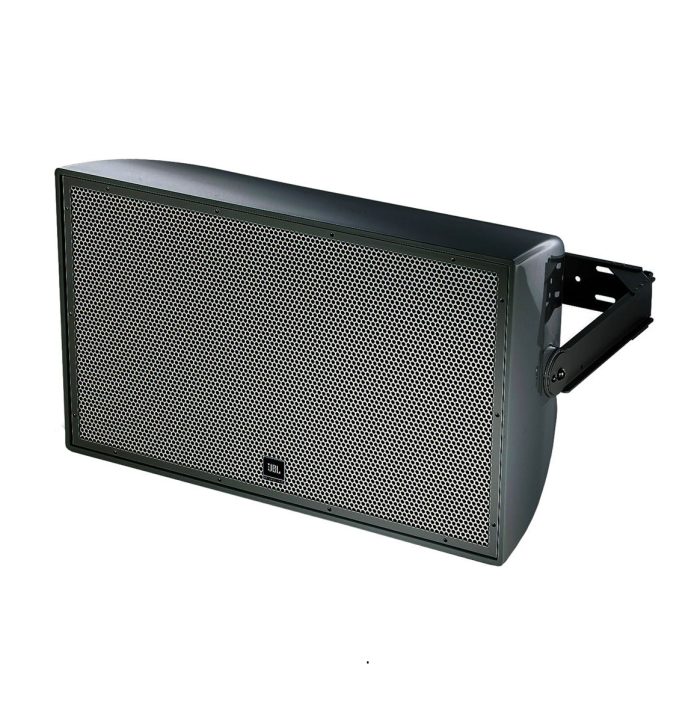

JBL AW526-LS-BK 15″ 2-Way All Weather wall mount Loudspeaker with EN54-24 Certification
20,438 د.إ
Description
Weather-Resistant, All Fiberglass Enclosure
EN 54-24 Compliant for life safety applications
120° x 60° Coverage
System Power Rating 400 W (1600 W peak), 100 hrs
Maximum SPL (1m) 127 dB-SPL cont avg (133 dB peak)
Dimensions H x W x D :485 x 810 x 478 mm(19.1 x 31.9 x 18.8 in)
impedance 8ohms
2265H Differential Drive Low-Frequency Driver
2432H High Frequency Compression Driver
Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
Rotatable waveguide for vertical or horizontal orientation
Available in Gray and Black finish
400 W, 70/100V Transformer Included
U-type Mounting Bracket Included
