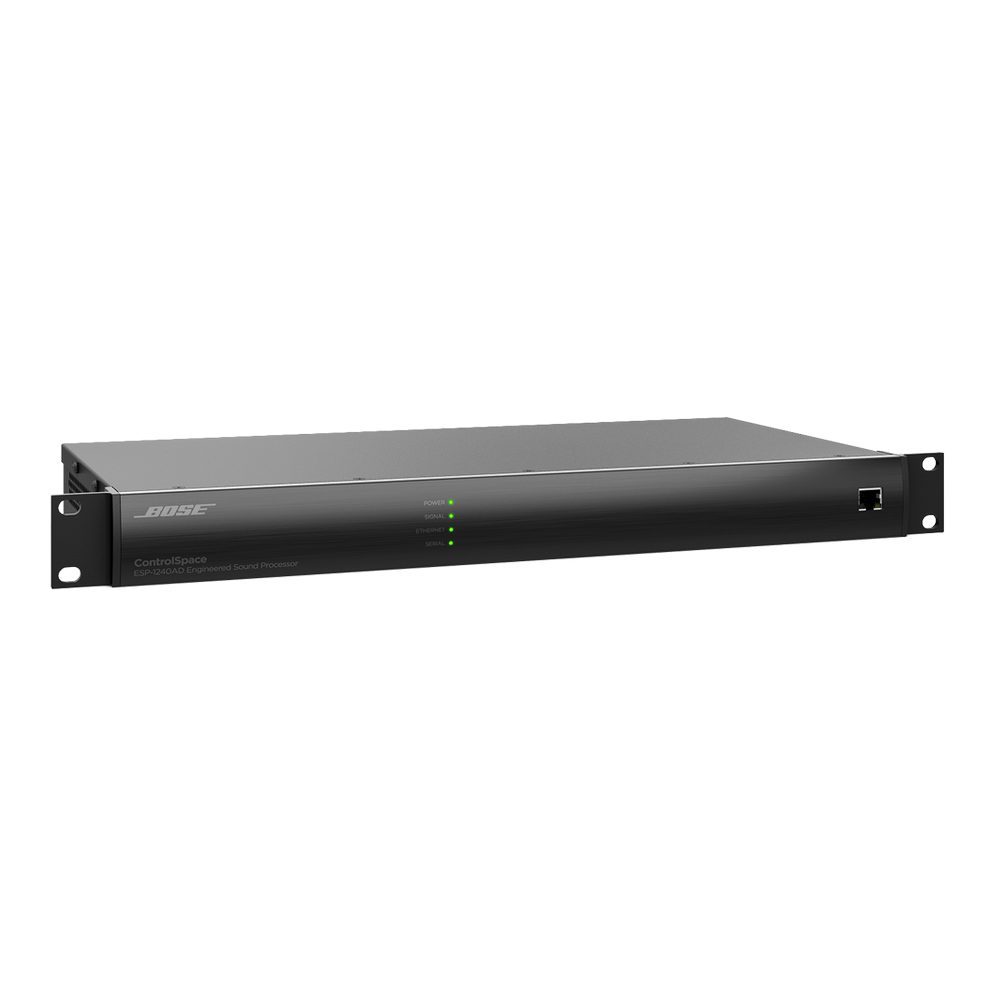

Bose ESP 1240AD Engineered Sound Processor

Description

Bose ESP 1240AD Engineered Sound Processor is an open-architecture DSP. It is design for a wide variety of applications from small, self-contain projects to large, network systems. It features integrated Dante audio networking, 12×4 analog audio I/O, a Bose Amp Link output, and a front-panel RJ-45 Ethernet connection.

Frequency Response 20 Hz – 20 kHz (+0.3 dB/-0.1 dB)

Signal Processor/CPU 32-bit fixed/floating-point DSP + ARM, 456 MHz

Output Channels 4 analog (balanced, line level), 8 Amp Link, 32 via Dante connection

Dimensions 1.7″ H x 19.0″ W x 8.5″ D (44 mm x 483 mm x 215 mm)
