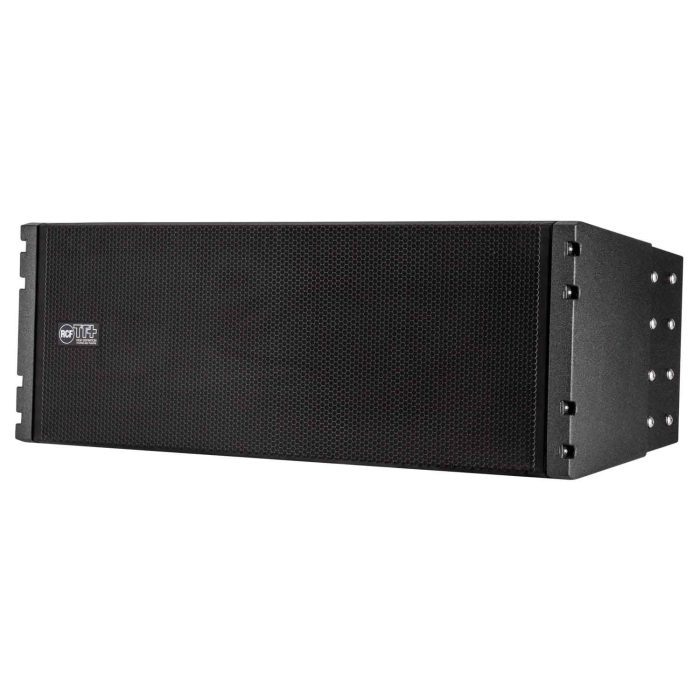

RCF TTL 55-A WP STADIUM ACTIVE 3-WAY LINE ARRAY MODULE

57,960 د.إ

The RCF TTL 55-A WP Stadium is a high-power, three-way, active line array module engineered to deliver an incredible output for use in outdoor large spaces. The three new designs for the six neodymium transducers powering the system result from long-lasting research in pioneering new solutions using the best materials available on the market. The mechanical suspension and orientation system is made of high-quality steel. The suspension system is directly connected to the aluminum sides of the cabinet and is particularly precise and easy to use.
3500 W, four-way digital amplification
2 x 12” high power neodymium woofers, 4” v. c.
10” neodymium midrange, 3.5” v. c.
3 x 1.5” neodymium compression drivers, 2.5” v. c.
96 kHz, 32-bit DSP processing

SKU: TTL 55-A WP STADIUM Categories: ,

Description

RCF TTL 55-A WP STADIUM ACTIVE THREE-WAY LINE ARRAY MODULE
Acoustical specifications
MAX SPL @ 1M:143 dB
HORIZONTAL COVERAGE ANGLE:90°
VERTICAL COVERAGE ANGLE:7°

Power section
TOTAL POWER:
7000 W Peak, 3500 W RMS
HIGH FREQUENCIES:
1000 W Peak, 500 W RMS
MID FREQUENCIES:
2000 W Peak, 1000 W RMS
LOW FREQUENCIES:
4000 W Peak, 2000 W RMS
COOLING: Convection/Forced

Physical specifications
HEIGHT:
380 mm / 14.96 inches
WIDTH:
1020 mm / 40.16 inches
DEPTH:
550 mm / 21.65 inches
WEIGHT:
60 kg / 132.28 lbs
