The JBL VMA2120 is a Commercial Series Bluetooth-enabled mixer/amplifier designed to provide flexible multi-source mixing and amplification for installation in restaurants, educational institutions, fitness centers, and retail stores. It features a 8-in/2-out mixer and 120W of output power. It can be installed in a standard 19” equipment rack with the supplied rackmount kit or set on a surface such as a desk or a ledge.

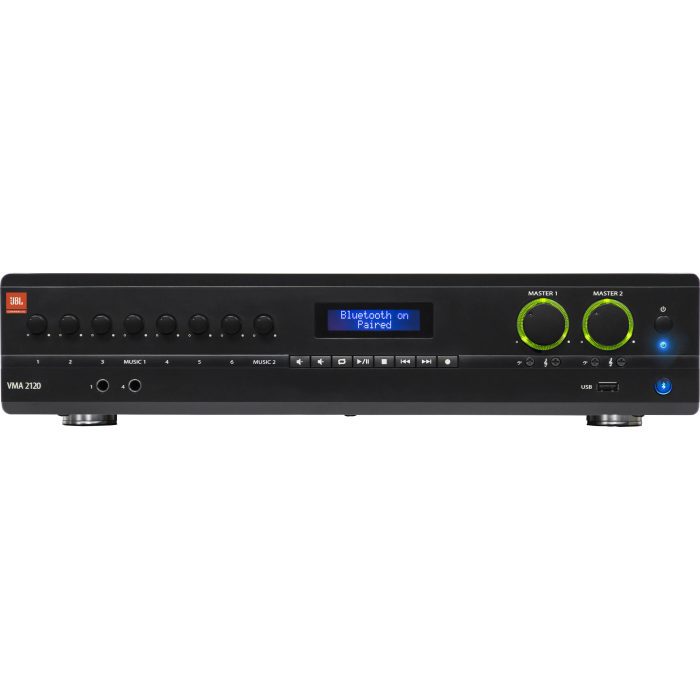

JBL VMA2120 Commercial Series 120W Bluetooth-Enabled Mixer/Amplifier
JBL VMA2120 Suitable for commercial and industrial use
Sensitivity (SPL / 1 W @ 1 m) Mic Input: 5.5 mVrms Line Input: 1.3 Vrms RCA Input (Stereo In): 130 mVrms
Impedance Mic: 400 Ohms Line: 20 kOhms (balanced) RCA: 50 kOhms
Frequency Response 4/8 Ohms Output: 20 Hz to 20 kHz, ±2 dB 70 V/100 V Outputs: 80 Hz to 15 kHz ±3 dB
Power Consumption 120 W (per channel into 4 Ohms or 8 Ohms, 1 kHz, ≤0.5% THD)
Dimensions 17 x 16.3 x 3.5″ / 432 x 415 x 88 mm
Euroblock, RCA, and 1/4″ TRS input connectors
Configurable output routing
Barrier block output connections to drive 8 Ohms, 70V or 100V speaker systems
