The JBL PD743-WRC Precision Directivity loudspeaker provides high-impact sound reinforcement at throw distances that are beyond the reach of traditional single-driver designs. A single module produces greater than 104 dB SPL (continuous) at distances of 50 m (165 ft).

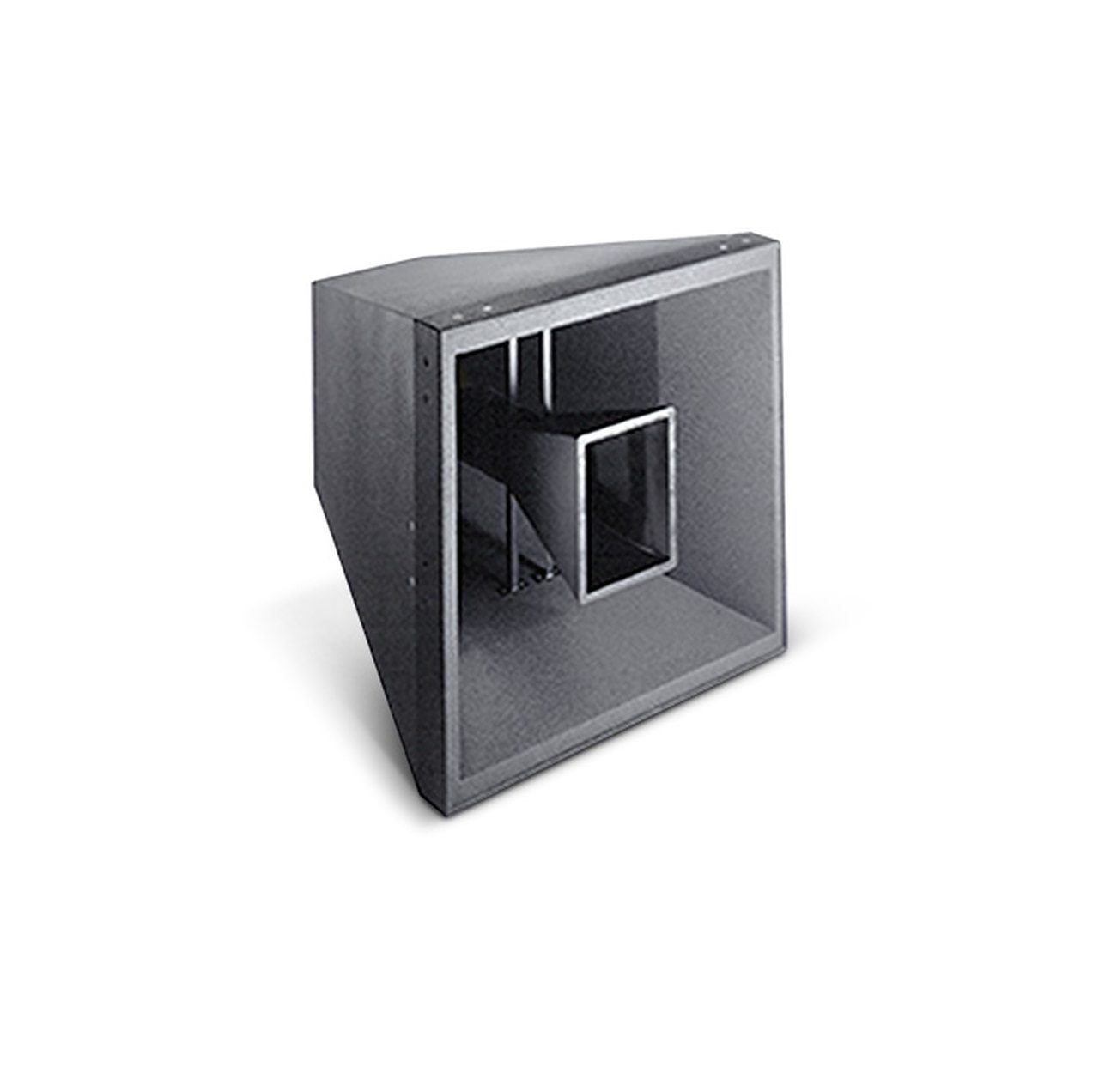

JBL PD743-WRC Very High Output Mid-High Loudspeaker System
JBL Very High Output Mid-High Loudspeaker System PD743-WRC with weather protection
40° by 30° Coverage Pattern–symmetrical frontal dimensions allow horizontal or vertical orientation within an array.
Frequency Response 230 Hz – 18.5 kHz
Frequency Range 200 Hz to 19.5 kHz
Power Capacity MHF – 400 W (1600 W Peak)
Maximum SPL MHF – 142 dB Peak
Impedance MF: 4 ohms HF: 16 ohms
Enclosure Trapezoidal with Rectangular sides, combination of 18 mm and 16 mm (5/8 in) exterior grade birch plywood
Mounting 20 x M10 (Bottom, Each Side, Rear, Top)
Dimensions 991 mm x 991 mm x 1145.8 mm (39.0 x 39.0 x 45.1 in)
IFS Interference Free Summation dual HF driver module eliminates destructive interference and increases output by 6 dB.
Dual 2432H compression drivers with 3” diaphragms
Dual CMCD-82H 8” horn-loaded cone mid-range drivers provide 6 dB greater output than traditional designs.
