The PD6322/95-WRC Precision Directivity full range, three-way loudspeakers are designed for applications requiring high output sensitivity with excellent pattern control. They can be utilized standalone in demanding music or speech systems where a low-frequency extension to 40 Hz is required.

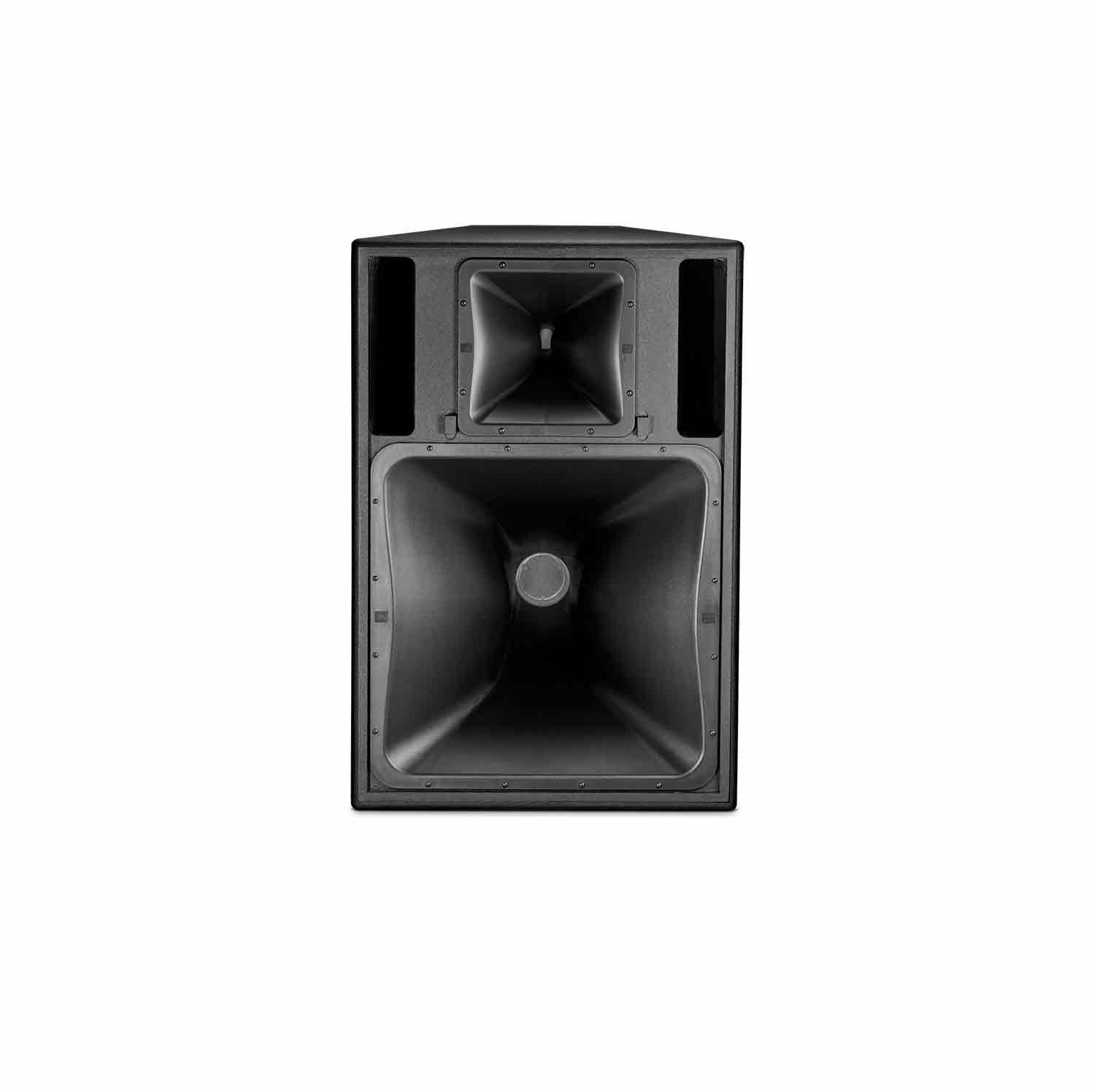

JBL PD6322/95 Passive/Tri-Amp Three-Way Full-Range Loudspeaker
JBL Passive/Tri-Amp Three-Way Full-Range Loudspeaker PD6322/95-WRC with weather protection
300 mm (12 in) transducers in a compact slot-loaded configuration for low-frequency extension to 40 Hz.
Frequency Response 49 Hz to 16 kHz ±3 dB
Frequency Range 41 Hz to 18 kHz -10 dB
Power Capacity Passive: 4800 W Peak (at 4 Ohms) 1200 W Peak (at 4 Ohms) Tri-Amp: 6400 W Peak 1400 W Peak 300 W Peak
Maximum SPL LF: 137 dB-SPL HF: 135 dB SPL (141 dB peak)Passive Mode: 134 dB SPL (140 dB peak)
Impedance 8 ohms
Enclosure Horn / Folded Horn Loudspeaker
Mounting 20 x M10 (Bottom, Each Side, Rear, Top)
Dimensions 39 x 26.5 x 27.8″ / 990.6 x 673.1 x 706.1 mm
Large PT Progressive Transition waveguides provide broadband pattern control, low distortion at high SPL levels and smooth frequency response.
