JBL PD6322/64-WRC Precision Directivity full range, three-way loudspeakers are designed for applications requiring high output sensitivity with excellent pattern control. They can be utilized standalone in demanding music or speech systems where low frequency extension to 40 Hz is required.

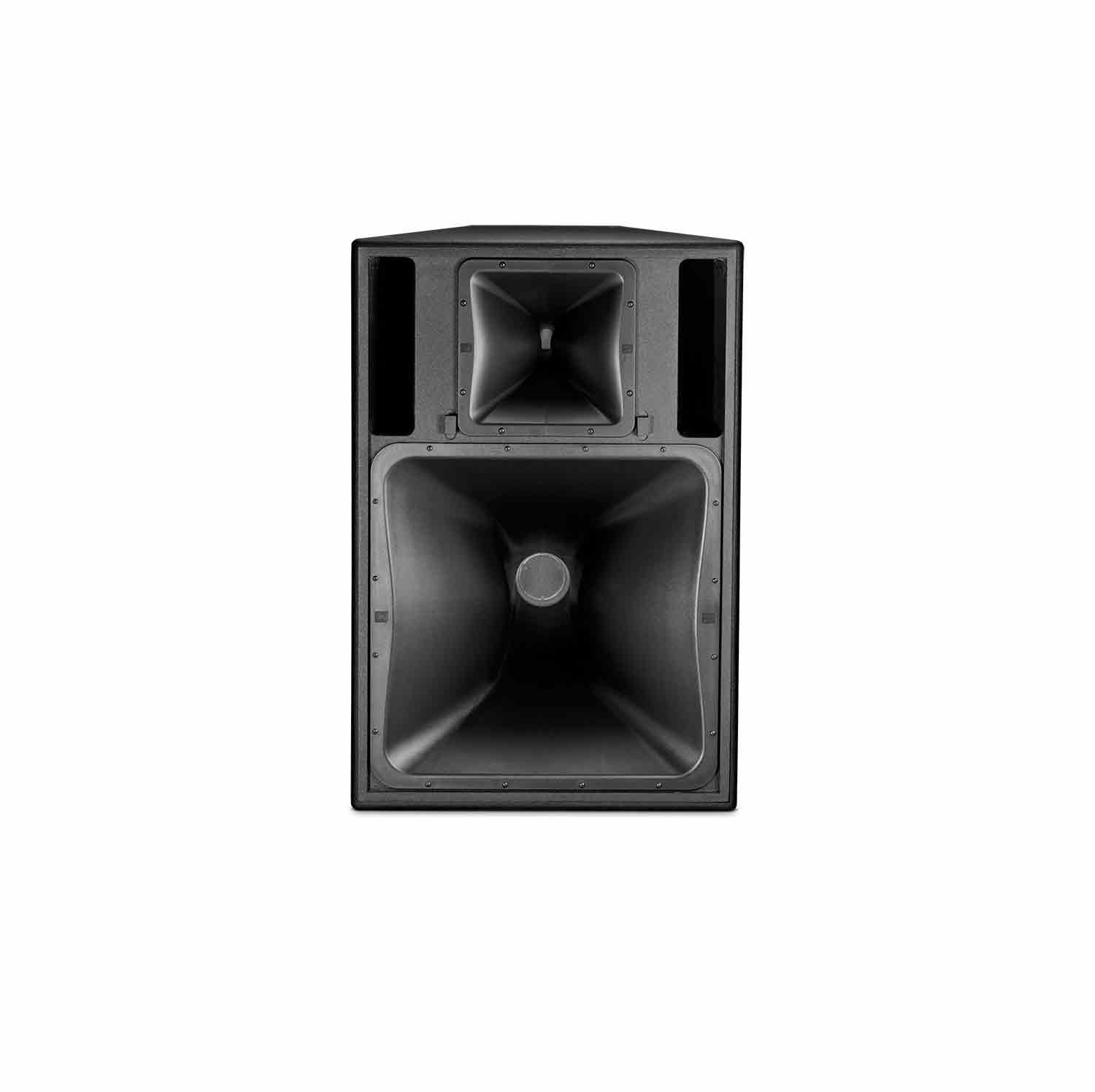

JBL PD6322/64-WRC Three-Way Loudspeakers
JBL PD6322/64 Precision Directivity Full Range Three-Way Loudspeakers with weather protection
Two high power 300 mm (12 in) transducers in a compact slot-loaded configuration for low frequency extension to 40 Hz.
Frequency Range (-10dB) 41 Hz to 17 kHz
Frequency Response (±3 dB) 49 Hz to 15 kHz
Coverage Pattern /43: 40° x 30°/64: 60° x 40°/66: 60° x 60°/95: 90° x 50°
System Power Rating LF: 1200 W (4800 W peak) MF/HF: 300 W (1200 W peak), 100 hrs
Maximum SPL (1m) Tri-amp mode: LF: 128 dB-SPL cont avg (134 dB peak), MF: 135 dB-SPL cont avg (141 dB peak), HF: 135 dB-SPL cont avg (141 dB peak), Passive mode: 135 dB-SPL cont avg (141 dB peak)
Nominal Impedance 4 ohms (2 x 8 ohms, internally wired in parallel)
Dimensions (H x W x D in vertical orientation) 991 x 673 x 897 mm (39.0 x 26.5 x 35.3 in)
