JBL PD6212 Series Precision Directivity loudspeakers are designed for applications requiring high output capability with excellent pattern control. The speakers can be utilized alone in music or speech systems where frequency extension to 80 Hz is adequate or combined with subwoofers to create extended bandwidth full-range systems.

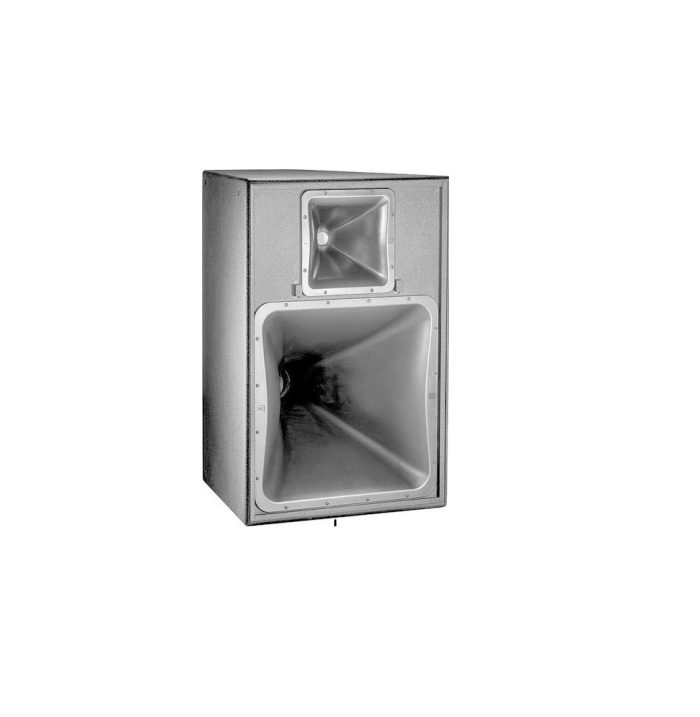

JBL PD6212/95 Passive/Biamp Two-Way Full-Range Loudspeaker White
19,355 د.إ
Description
JBL PD6212/95 has 300 mm (12 in) horn-loaded LF and large-format HF driver – high sensitivity design with high continuous
SPL capability.
Frequency Response 90 Hz to 16 kHz ( ± 3 dB) Frequency Range 80 Hz to 18 kHz (-10 dB)
Power Capacity Passive: 1200 W Peak (at 8 Ohms) Bi-Amp: 1600 W Peak 300 W Peak
Maximum SPL 137 dB SPL (Passive) 140 dB SPL (MF, Bi-Amp) 139 dB SPL (HF, Bi-Amp)
Impedance 8 ohms Enclosure Trapezoidal with 12.5 degree side angles, 16 mm (5/8 in) exterior
Mounting 20 x M10 (Bottom, Each Side, Rear, Top) Dimensions 39 x 26.5 x 27.8″ / 990.6 x 673.1 x 706.1 mm
Large PT Progressive Transition waveguides provide broadband pattern control, low distortion at high SPL levels and smooth frequency response.
