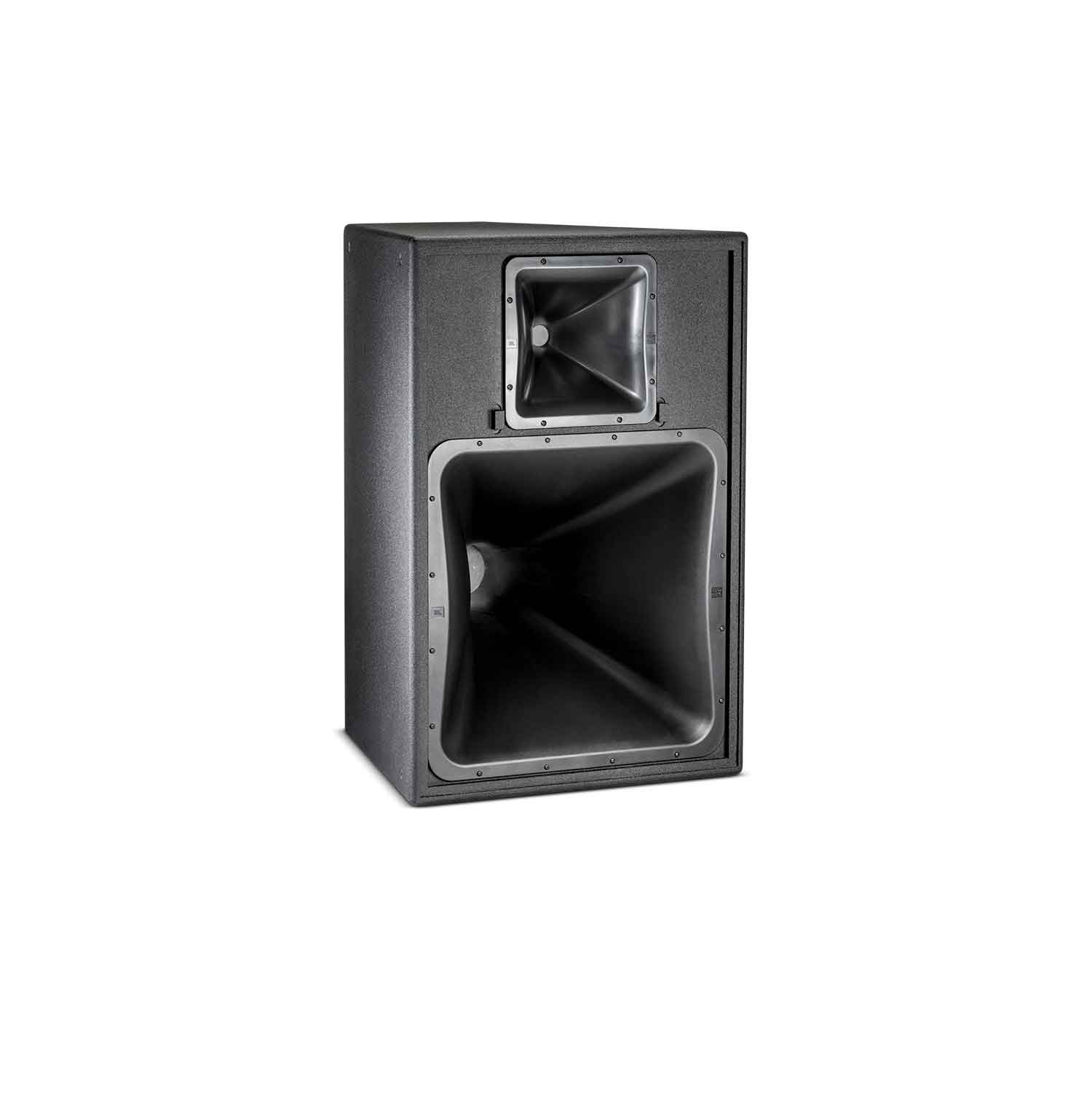

JBL PD6200/43-WRX Weather Resistant Passive Two-Way Mid-/High-Frequency Loudspeaker

Description

JBL PD6200/43-WRX High power 200 mm (8 in) dual-coil CMCD Cone Midrange Compression Driver provides high sensitivity and high continuous SPL capability along with low distortion, extended bandwidth, and improved phase coherence with Extreme weather Protection

Frequency Response 240 Hz to 16 kHz( ± 3 dB)

Frequency Range 200 Hz to 18 kHz (-10 dB)

Power Capacity Passive: 1200 W Peak (at 8 Ohms) Bi-Amp: 1400 W Peak 300 W Peak

Maximum SPL MF: 137 dB SPL (143 dB peak)HF: 135 dB SPL (141 dB peak) Passive Mode: 136 dB SPL (142 dB peak)

Impedance 8 ohms

Enclosure Trapezoidal with 15 degree side angles, 16 mm (.625 in) exterior grade 11-ply Finnish birch plywood

Mounting 20 x M10 (Bottom, Each Side, Rear, Top)

Dimensions 991 x 673 x 897 mm (39.0 x 26.5 x 35.3 in)

Large format neodymium HF driver provides clear, intelligible high-frequency projection.

Large PT Progressive Transition waveguides provide excellent pattern control, low distortion at high SPL levels and smooth frequency response.

Rotatable waveguides allow either horizontal or vertical cabinet orientation.
