PD566-WRX is a Precision Directivity loudspeaker designed for applications requiring high output capability with excellent pattern control. PD566-WRX can be utilized in music or speech systems where frequency extension to 80 Hz is adequate or combined with subwoofers to create extended bandwidth full-range systems.

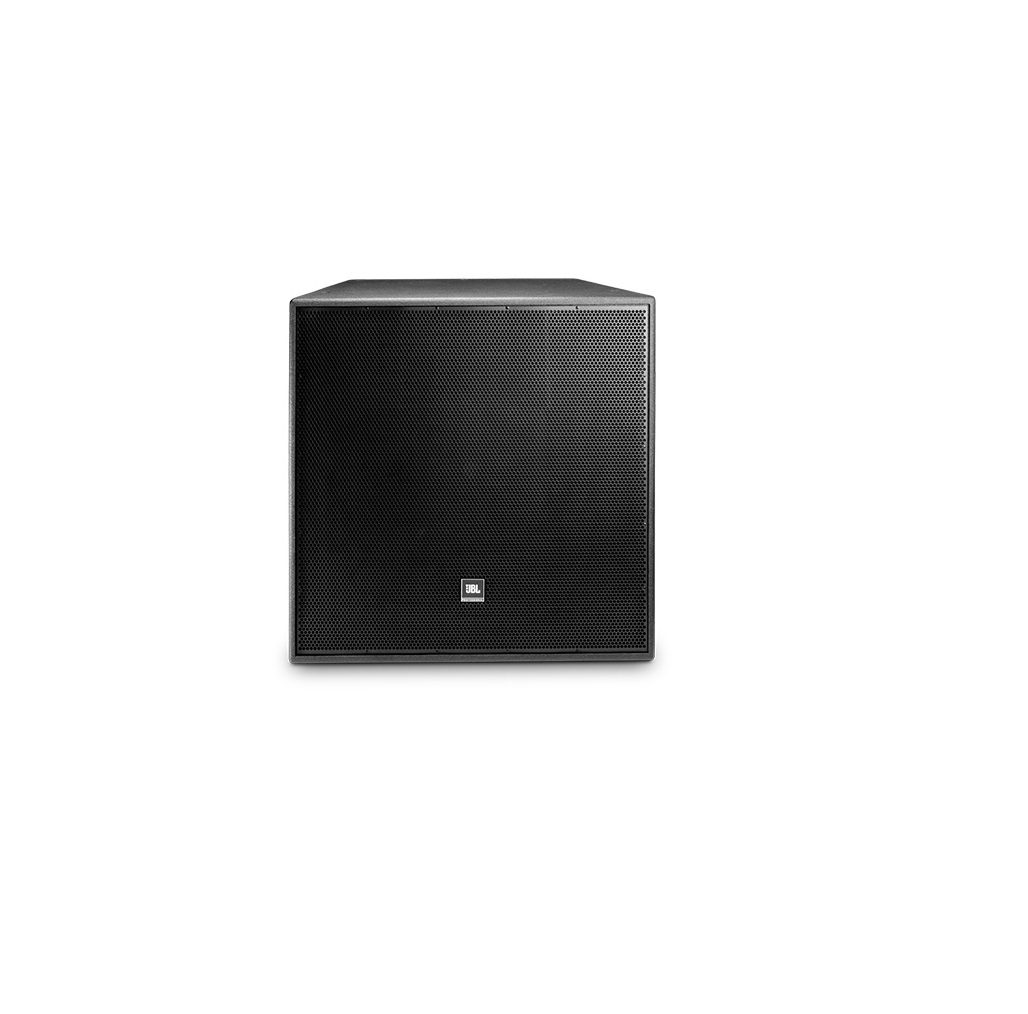

JBL PD566-WRX Loudspeaker with Extreme Weather Protection
JBL PD566-WRX has 380 mm (15”) horn-loaded low-frequency driver
Frequency Response 90Hz to 17kHz
Frequency Range 50Hz to 20kHz Maximum SPL Bi-amp: LF: 133 cont (139 peak) HF: 133 cont (139 peak) Passive: 131 cont (137 peak)
Impedance 8 ohms8 ohms Enclosure Trapezoidal with 10 degree side angles, 18 mm exterior grade 11-ply Finnish birch plywood.
Dimensions 782.0 x 783.0 x 670.0 mm (30.8 x 30.8 x 26.4 in)
Large PT Progressive Transition waveguides provide broadband 60° x 60° pattern control, low distortion at high SPL levels and smooth frequency response
