PD544-WRX is a Precision Directivity loudspeaker designed for applications requiring high output capability with excellent pattern control. PD544 can be utilized in music or speech systems where frequency extension to 80 Hz is adequate or combined with subwoofers to create extended bandwidth full-range systems.

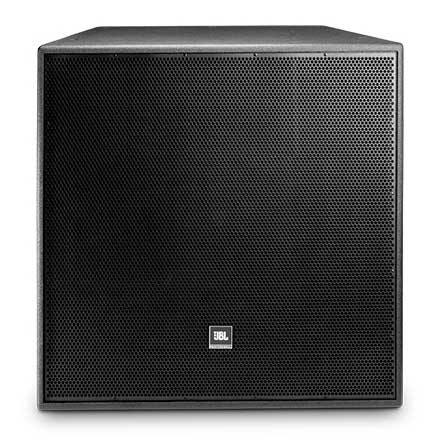

JBL PD544-WRX Loudspeaker with Extreme Weather Protection
JBL PD544-WRX is a Precision Directivity loudspeaker designed for applications requiring high output capability with excellent pattern control.380 mm (15”) horn-loaded low-frequency driver Frequency Range: (-10dB) 50Hz to 20kHz
Frequency Response: (±3 dB) 90Hz to 17kHz
Coverage Pattern: 40° x 40° and Nominal Impedance: 8 ohms
System Power Rating: Passive mode: 500W 2hrs, 300W 100hrs (IEC)
Maximum SPL (1m): Bi-amp: LF: 133 cont (139 peak) HF: 134 cont (140 peak) Passive: 133 cont (139 peak)
Drivers: LF Driver: 2031H 380 mm (15 in) and HF Driver: JBL 2432H, 38 mm (1.5 in)
Dimensions(H x W x D): 782.0 x 783.0 x 670.0 mm (30.8 x 30.8 x 26.4 in)
