PD564-WRX is a Precision Directivity loudspeaker designed for applications requiring high output capability with excellent pattern control. PD564-WRX can be utilized in music or speech systems where frequency extension to 80 Hz is adequate or combined with subwoofers to create extended bandwidth full-range systems.

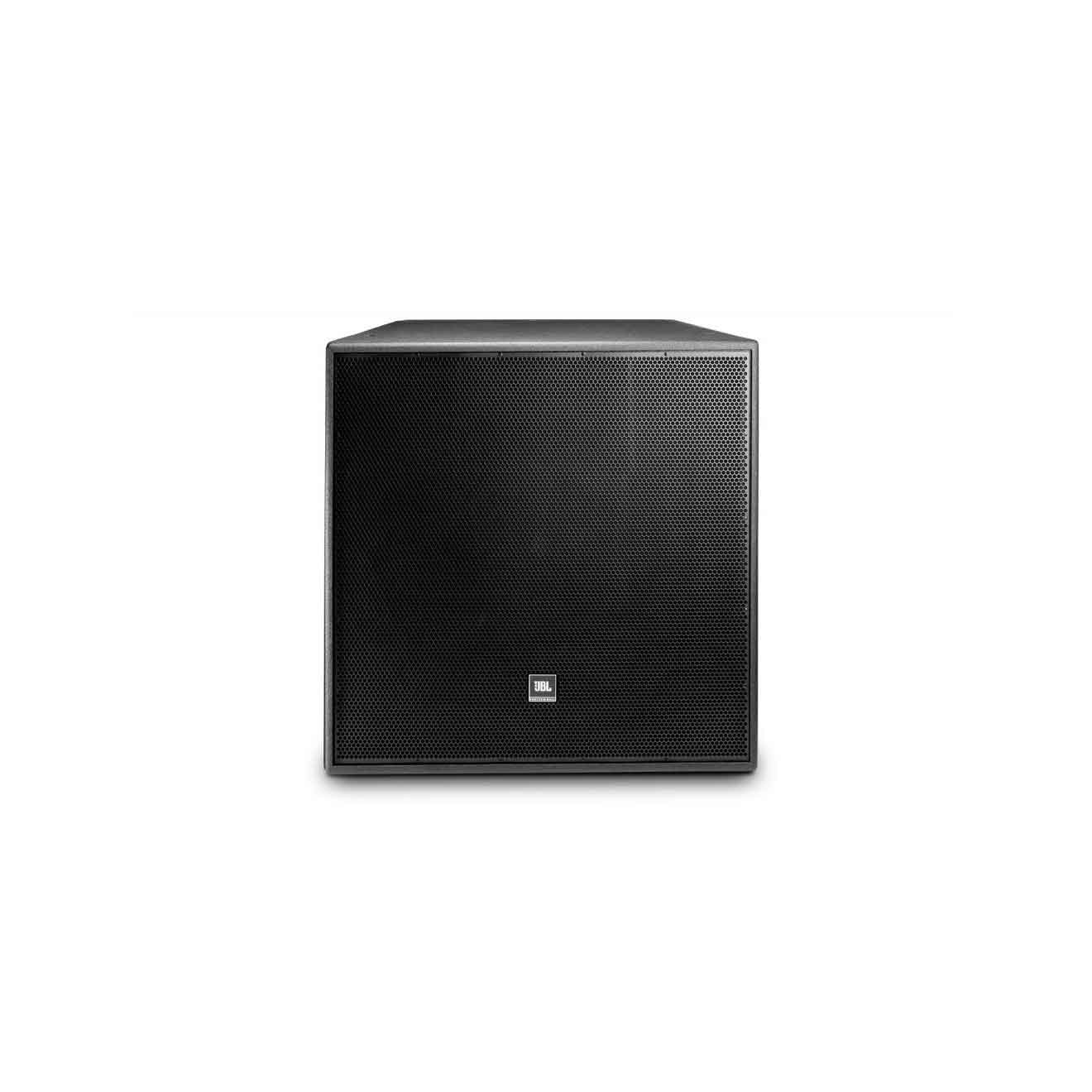

JBL Loudspeaker PD564-WRX Extreme Weather Protection
JBL PD564-WRX is a Precision Directivity loudspeaker designed for applications.
Frequency Range: (-10dB) 50Hz to 20kHz
Frequency Response: (±3 dB) 90Hz to 17kHz
Coverage Pattern: 60° x 40° and Nominal Impedance: 8 ohms
System Power Rating: Passive mode: 500W 2hrs, 300W 100hrs (IEC)
Dimensions(H x W x D): 782.0 x 783.0 x 670.0 mm (30.8 x 30.8 x 26.4 in)
Maximum SPL (1m): Bi-amp: LF: 133 cont (139 peak) HF: 132 cont (138 peak) Passive: 132 cont (138 peak)
LF Driver: 2031H 380 mm (15 in) driver and HF Driver: JBL 2432H, 38 mm (1.5 in) exit compression driver
