JBL AM7315/64-WRCspeakers are high power 3-way full-range loudspeaker systems comprised of one 380 mm (15 in) Differential Drive® low frequency driver, one 200 mm (8 in) CMCD Cone Midrange Compression Driver, and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver. The multi-band PT Progressive Transition mid-high frequency waveguide provides well-controlled coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation. High-slope crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. Pre-engineered array bracketry is available. AM7315 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.

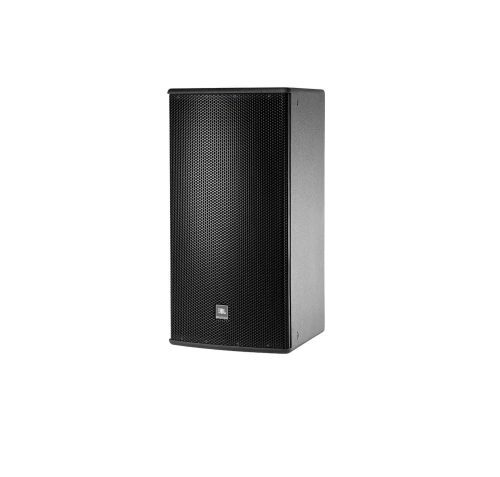

JBL High Power 3-Way Loudspeaker AM7315/64-WRC With 60° x 40° Coverage, WRC Weather Resistant Finish Speaker
JBL AM7315/64-WRC has Frequency Range (-10dB) 38 Hz – 20 kHz
Frequency Response (±3 dB) 45 Hz – 18 kHz
Coverage Pattern /64: 60° x 40°, rotatable waveguide/95: 90° x 50°, rotatable waveguide
JBL AM7315/64 speakers are high power 3-way full-range loudspeaker
system power rating: LF: 600 W (2400 W peak), 100 hrsMF/HF: 200 W (800 W peak), 100 hrs
Maximum SPL (1m): 127 dB-SPL cont avg (133 dB peak)
Nominal Impedance: 8 ohms
Dimensions (H x W x D in vertical orientation) 967 x 561 x 657 mm (38.1 x 22.1 x 25.9 in)
2265H Differential Drive Low-Frequency Driver
