JBL 8138 is an 8″ ceiling speaker designed for use with a pre-install in ceiling back can, resulting in high fidelity performance at a cost effective price point.
Drivers: 200 mm (8 in) Full-Range, Dual-cone
Frequency Response: (-10dB) 95 Hz – 18 kHz
Coverage Angle: 90° conical
Driver Power Capacity: 40W (160W peak), 2 hrs25W (100W peak), 100 hrs
Maximum SPL (1m): 105 dB (top 70V/100V tap)
Transformer Taps: 6W, 3W, 1.5W, (0.75W at 70V only)
Dimensions (Diameter x Depth): 327 mm (12.9″) diameter baffle x 84 mm (3.3″) depth from back of baffle. Overall depth, 99 mm (3.9″)

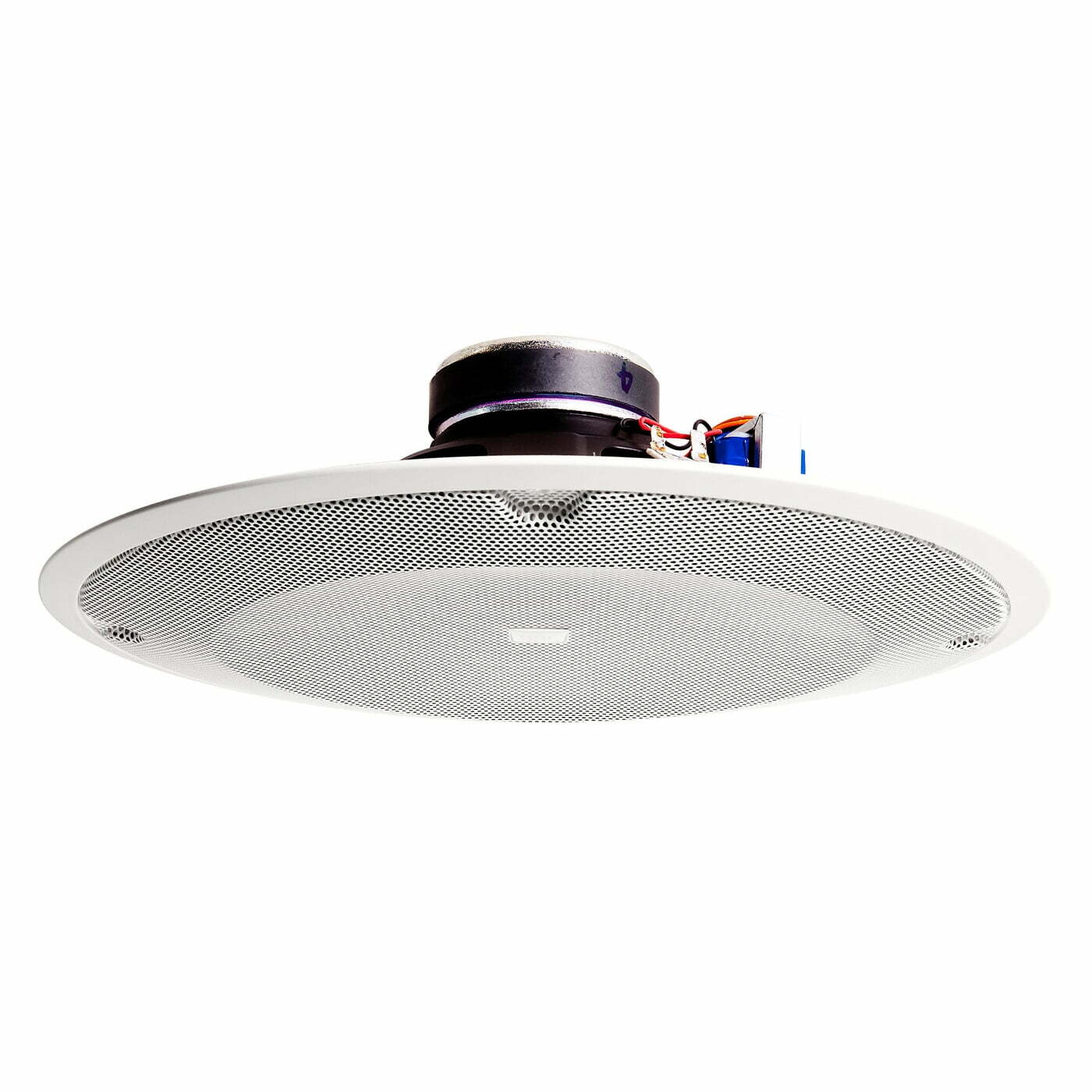

JBL Full Range In Ceiling Speaker 8138 White
288 د.إ
Description
JBL 8138 is an 8″ ceiling speaker designed for use with a pre-install in ceiling back can, resulting in high fidelity performance at a cost effective price point.
Drivers: 200 mm (8 in) Full-Range, Dual-cone
Frequency Response: (-10dB) 95 Hz – 18 kHz
Coverage Angle: 90° conical
Driver Power Capacity: 40W (160W peak), 2 hrs25W (100W peak), 100 hrs
Maximum SPL (1m): 105 dB (top 70V/100V tap)
Transformer Taps: 6W, 3W, 1.5W, (0.75W at 70V only)
Dimensions (Diameter x Depth): 327 mm (12.9″) diameter baffle x 84 mm (3.3″) depth from back of baffle. Overall depth, 99 mm (3.9″)
