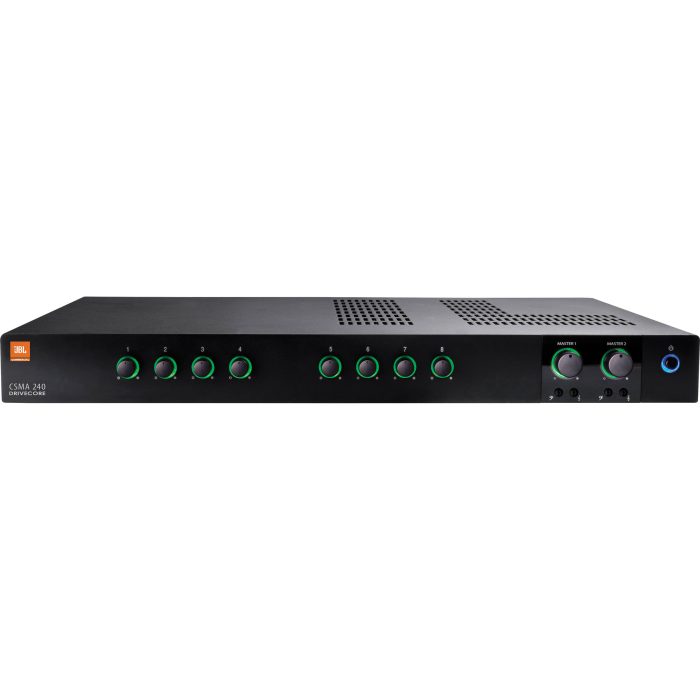

the CSMA 240 Designed for commercial and industrial use, Commercial Series Mixer/Amplifier from JBL is a mixer/amplifier with eight mixer-channel inputs and two output channels. It’s capable of reaching 40W of peak power with 5W per channel. The unit’s front panel sports volume controls for each channel, as well as two master volume adjustment knobs, two sets of bass and treble controls, and a power switch. The volume controls are illuminated so they can be seen and operated in darkened environments.
JBL CSMA 240 Dual 40W Output Commercial 8 Channel Mixer Amplifier
8 inputs with 2 outputs of 120W of power.
Sensitivity (SPL / 1 W @ 1 m) Mic Input: 3 mV RMS Line Input: 775 mV RMS RCA Input: 300 mV RMS
Impedance Mic: 400 Ohms Line: 20 kOhms (balanced) RCA: 50 kOhms
Frequency Response 4/8 Ohms Output: 20 Hz – 20 kHz, ±2 dB 70 V/100 V Outputs: 80 Hz – 15 kHz ±2 dB Line Out: 20 Hz – 20 kHz, ±1 dB Max.
Power Consumption 40 W per channel into 4 Ohms or 8 Ohms, 1 kHz, ≤ 0.5% THD
Dimensions 17.2 x 11.9 x 1.7″ / 436.9 x 302.3 x 43.2 mm
Weight 4.81 Kg
