The AM7212/64 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low frequency driver and 2432H high-frequency 38mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

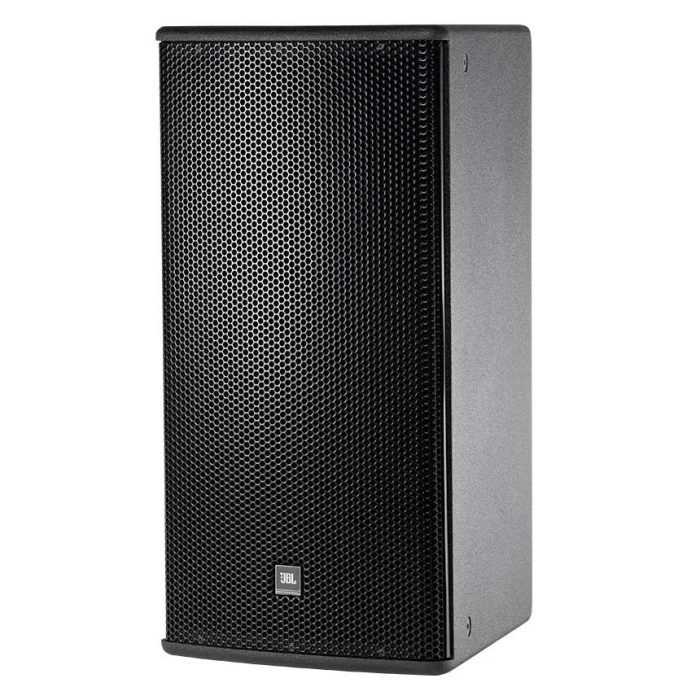

JBL AM7212/66-WRX High Power 2-Way Loudspeaker with 60° x 60° Coverage, WRX Extreme Weather Resistant Speaker
22,224 د.إ
Description
JBL AM7212/66-WRX is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap.
60° x 60° Coverage
2262H Differential Drive® Low- Frequency Driver
2432H High-Frequency Compression Driver
Frequency Range(-10dB): 36 Hz – 20 kHz
Frequency Response(±3 dB): 42 Hz – 20 kHz
Nominal Impedance: 8 ohms and Coverage: 60° x 60°
Dimensions(H x W x D): 711 x 369 x 458 mm (28 x 14.5 x 18 in)
System Power Rating: Passive mode: 600 W (2400 W peak), 100 hrs
