Description

Projection System : DLP

DMD size : 0.47″

Product Features : Laser light source 4K 5000 ANSI Lumens High Brightness Big zoom & Lens shift 360-degree Projection HDBaseT Projector and remote control ID setting

Brightness (ANSI lumens) : 5000

Native Resolution : 4K UHD (3840×2160)

Native Aspect Ratio : 16:9

Contrast Ratio (FOFO) : 3000000:1

Display Color : 30-bit (1.07 billion colors)

Light Source : Laser

Light Source Life : 20000 hrs

Throw Ratio : 1.36 ~ 2.18

Zoom Ratio : 1.6x

Lens : F/# = 1.81 ~ 2.1,f = 14.3 ~ 22.9 mm

Projection Offset (Full-Height) : 0%

Keystone Adjustment : 1D, Vertical ± 30 degrees

Lens Shift Vertical: -60%~ +60% Horiztonal : -23%~ +23%

Input Lag : 51 ms (1080p@60Hz)

Resolution Support : VGA (640 x 480) to 4K UHD (3840 x 2160)

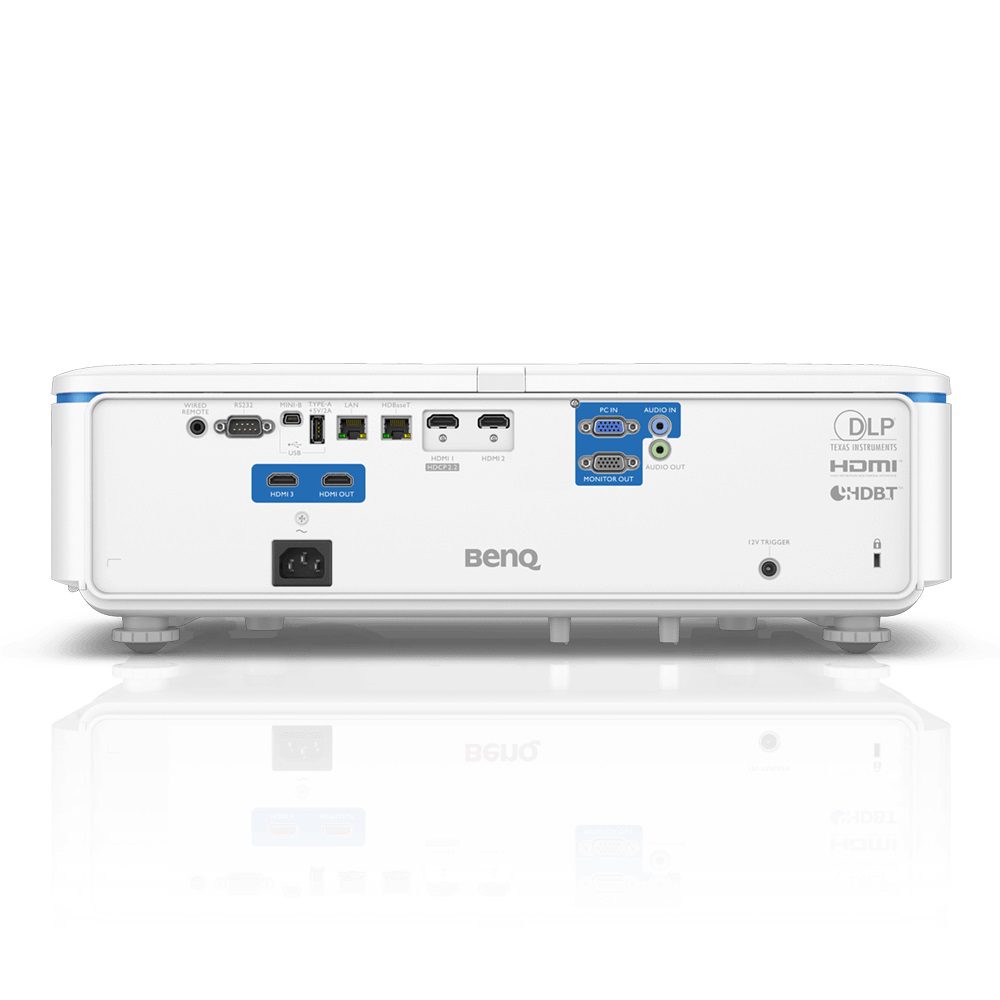

PC in (D-sub 15pin) : (x1),PC in-1

Monitor out (D-sub 15pin) : (x1)

HDMI in : (x3),HDMI-1 (2.0a/HDCP2.2),HDMI-2 (1.4b/HDCP1.4),HDMI-3 (1.4a/HDCP1.4)

Monitor out (HDMI) : (x1)

LAN (RJ45) : (x1)

HDBaseT (RJ45) : (x1),Control/Video/Audio

USB Type A : (x1),USB Type A-1 (2.0/Power Supply2.0A)

USB Type Mini B : (x1),USB Type Mini B-1(service)

RS232 in (DB-9pin) : (x1)

Wired Remote in (3.5mm Mini Jack) : (x1)

DC 12V Trigger (3.5mm Jack) : (x1)

Speaker : (x1),10W

Audio in (3.5mm Mini Jack) : (x1),1

Audio out (3.5mm Mini Jack) : (x1),1
